LKV375KVM

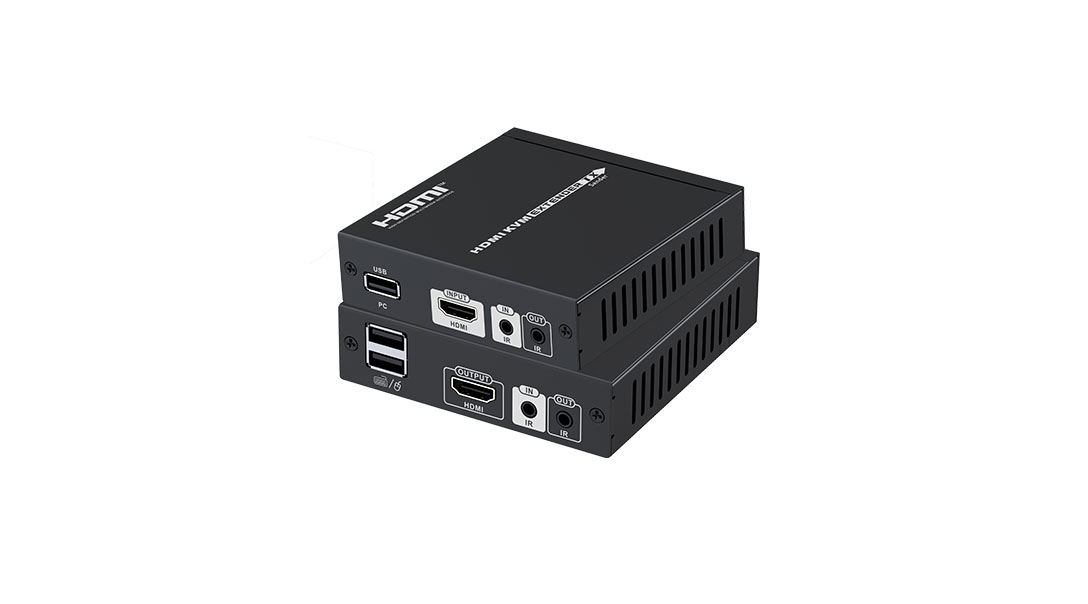

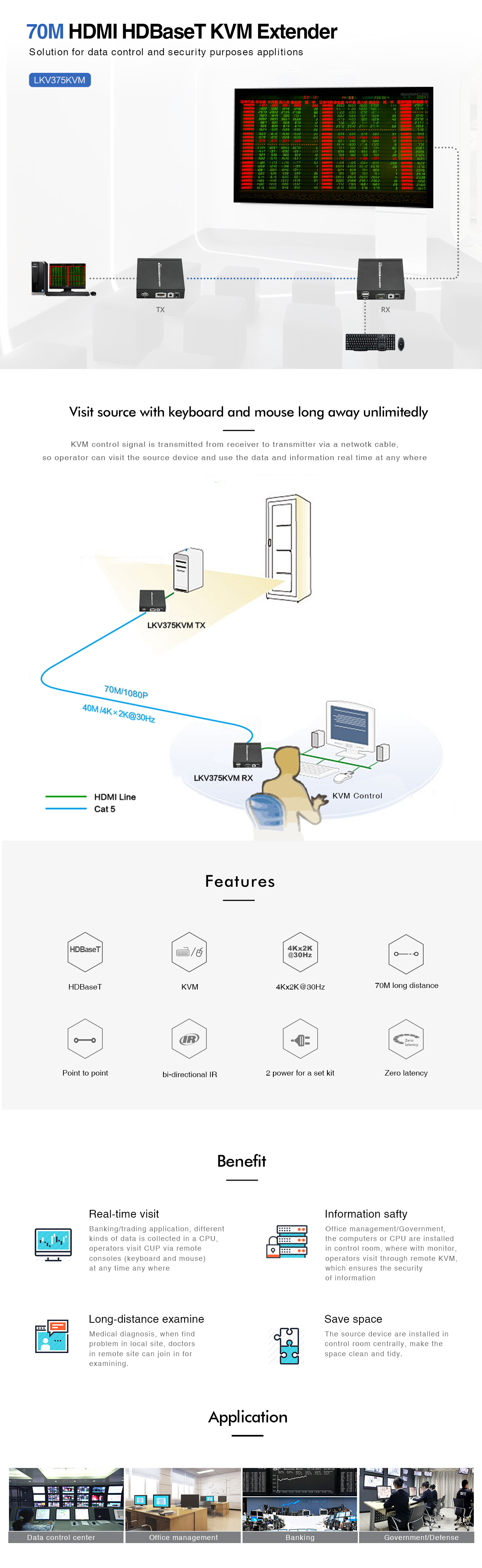

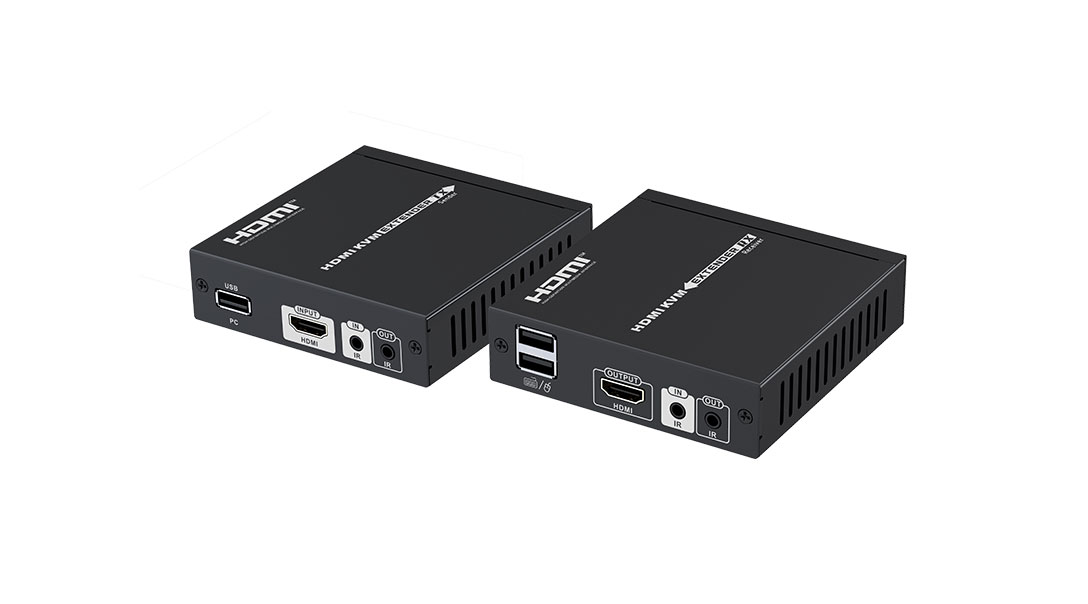

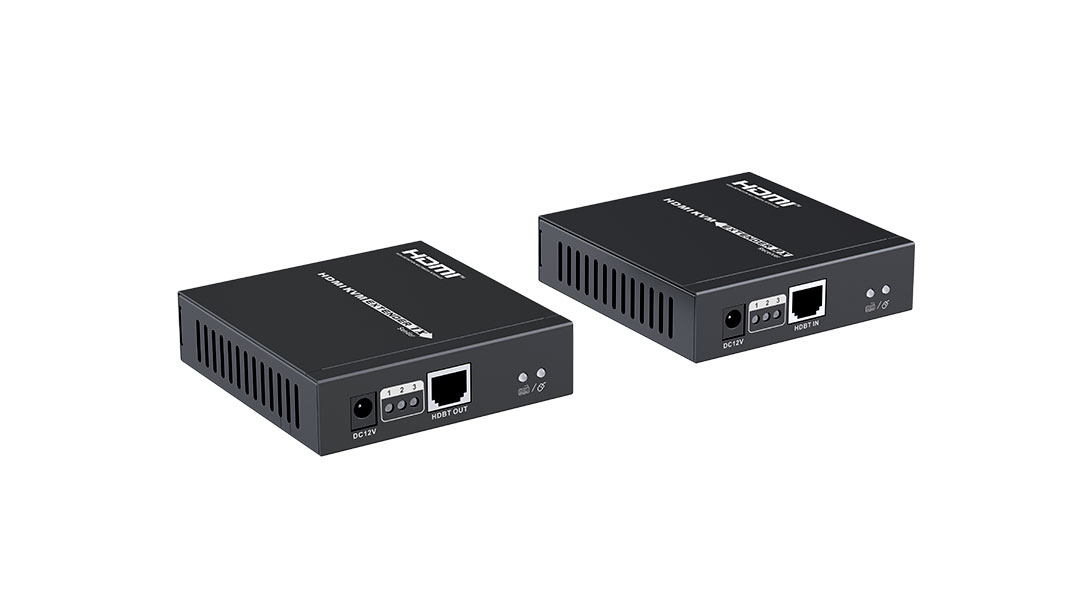

HDMI HDBaseT KVM Extender

This HDBaseT single network cable KVM extender transmits HDMI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, CEC, HDCP and ultra HD 4K@30Hz.
Introduction
Parameters
Downloads


Voltage/Current
DC12V/1A
Power consumption
8W
HDMI compliance
HDMI 1.4
HDCP compliance
HDCP 1.4
HDMI resolution supported
480i@60Hz、480p@60Hz、576i@50Hz 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、1080p@50/60Hz、 4K×2K@30Hz
Supports audio formats
LPCM,DTS-HD,Dolby True HD
Maximum transfer rate
10.2Gbps
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Input cable length supported
≤5m(AWG26 HDMI1.3cable standard)
Output cable length supported
≤5m(AWG26 HDMI1.3cable standard)
CAT5/60m
Up to 1080p@60Hz 36bpp
CAT5/35m
1080p@60Hz 48bpp, 1080p@60Hz 3D, 4Kx2K@30Hz
CAT6/70m
Up to 1080p@60Hz 36bpp
CAT6/40m
1080p@60Hz 48bpp, 1080p@60Hz 3D, 4Kx2K@30Hz
Electrostatic protection of the whole machine
1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2
IR passback
Bi-direction
Working temperature
0~50℃
Storage temperature
-10~70℃
Humidity (no condensation)
0~90%
Dimension
99.45(L) x 94.50(W) x 25.70(H)mm
Material
Aluminium alloy material + Iron alloy material
Processing technology
Sandblasting
Color
black
Weight
TX:220g RX:230g
Mean time between failures (MTBF)
>30000 Hours
