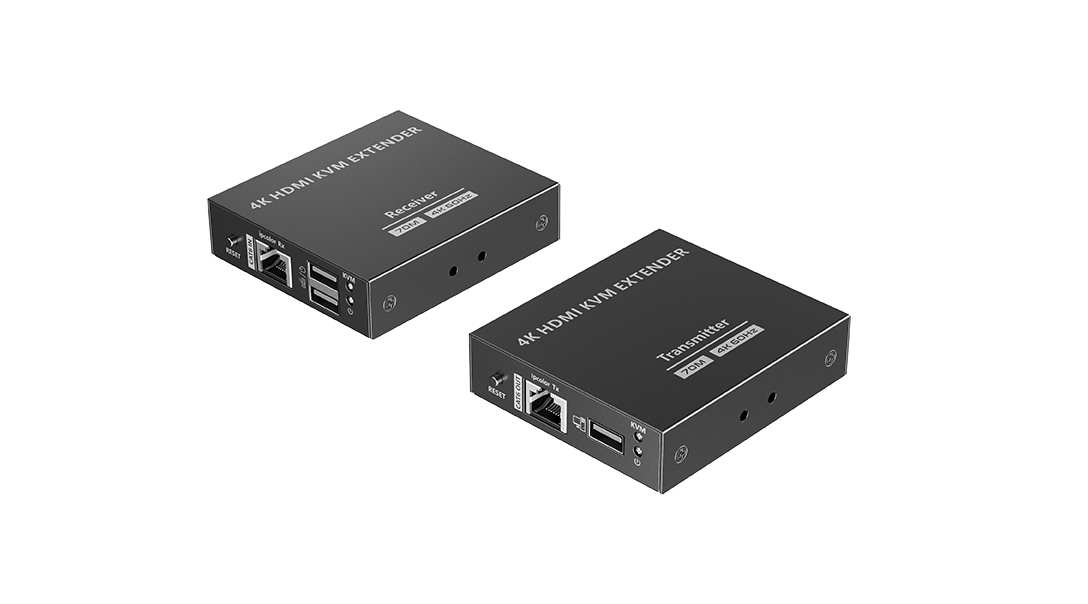

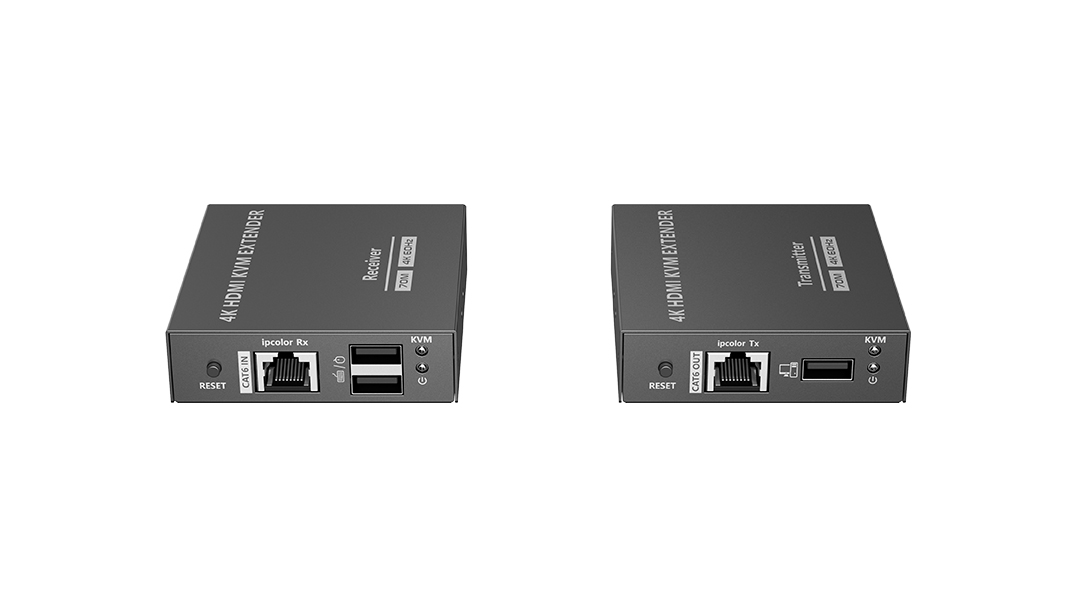

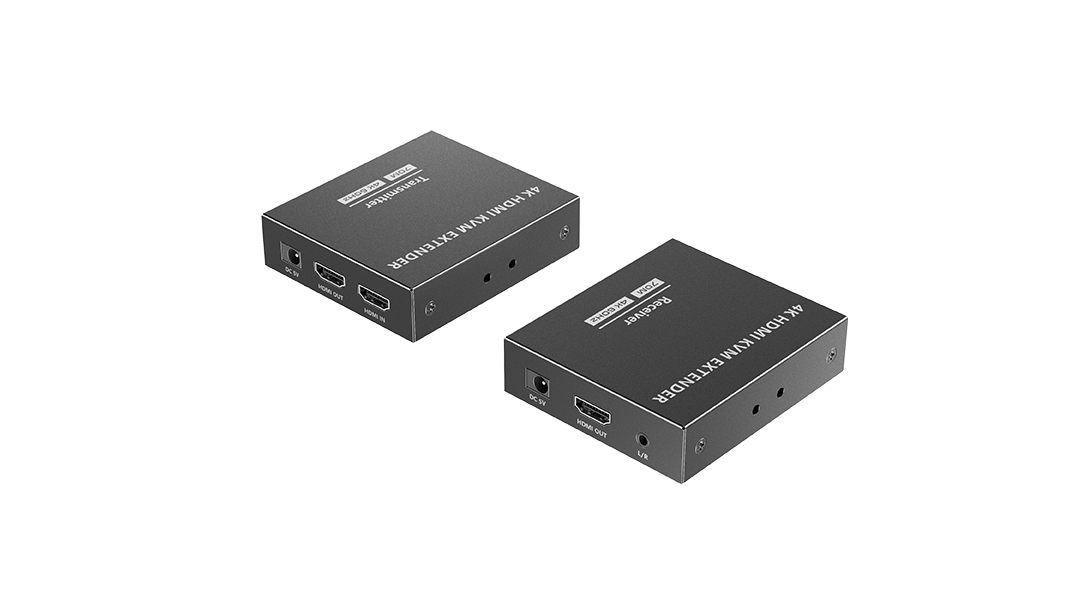

LKV565KVM

4K@60Hz HDR 70M HDMI™ KVM Extender

This is an HDMI™ point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI™ loop out, KVM function, 3.5mm stereo audio output, etc. This kit is a reliable, ultrahigh- definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.
Introduction
Parameters
Downloads


HDMI length
≤ 5m
Maximum transfer rate
18Gbps
EDID passthrough
Supported,auto downscaling
Compatibility
HDMI 2.0,HDCP 2.2
Resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 3440x1440, 2560x1440, 2560x1080, 2048x1080, 1920x1440, 1920x1200, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
Transmission distance
CAT6/6A/7 ≤ 70m
Audio formats
LPCM/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
USB version
USB 1.1, compatible with USB 1.0
Power Supply
DC 5V/1A
Power Consumption
TX:< 4W,RX:< 4W
Working
-20℃~60℃
Storage temperature
-30℃~70℃
Humidity
0~90% RH (no condensation)
Housing
lron
Weight
TX: 155g,RX: 155g
Color
Black
Dimensions
85.0(L)x75.5(W)x21.5(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
