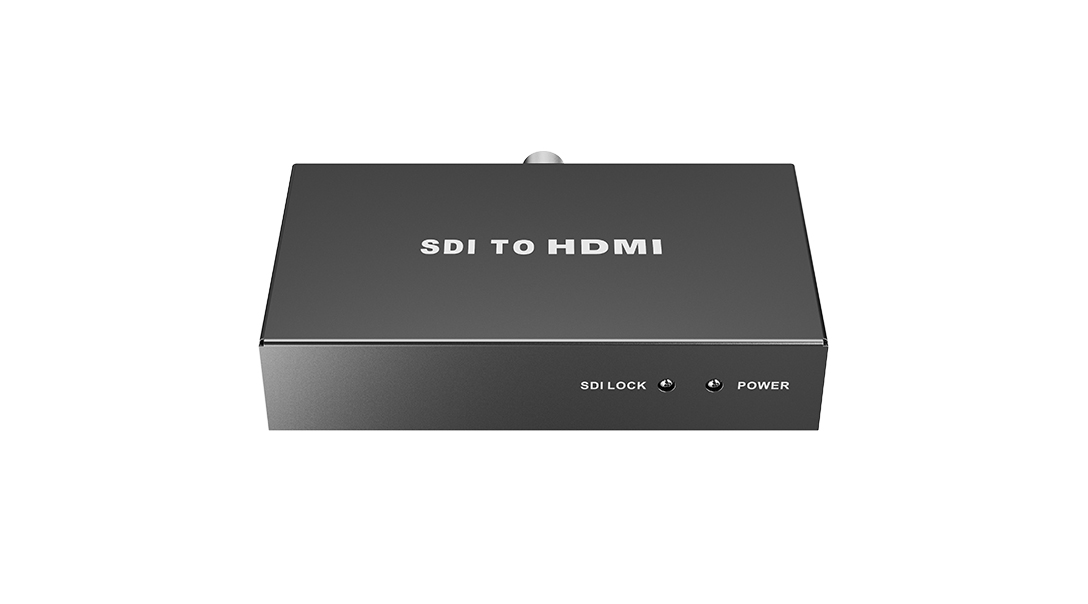

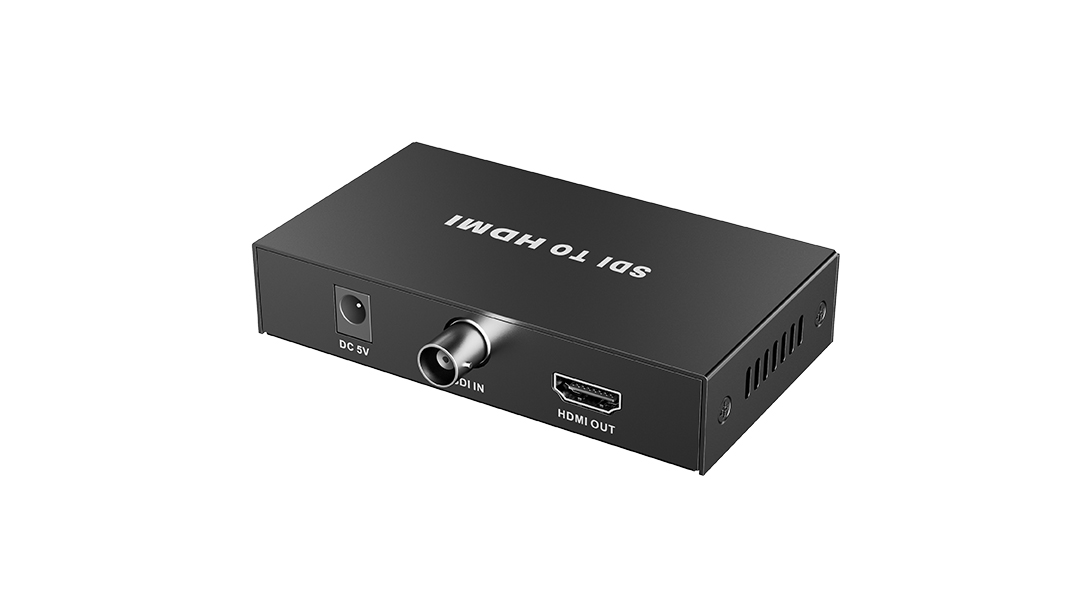

    LKV357

    SDI to HDMI™ Converter

    Supports the highest input and output resolution 1080P@60Hz, It is a 3G-SDI / HD-SDI / SD-SDI to HDMI™ Converter, which converts pure digital SDI signals to HDMI™ in 1080P, also supports auto format detection 3G-SDI, SD-SDI and HD-SDI input signals, Supports the highest transfer speed of 2.97Gbps to give you fast signal transmission without any loss.
    Introduction
    Parameters
    Downloads


    Power Supply
    DC5V/1A
    SDI format
    SD-SDI HD-SDI 3G-SDI
    SDI data transfer rates
    75Ω
    SDI input resolutions
    720P/50Hz,720P/60Hz,1080i/50Hz,1080i/60Hz,
    1080P/24/25/30/50/60Hz
    Recommended resolutions：720P@50Hz/60Hz or 1080P@50Hz/60Hz
    HDMI output resolutions
    720P/50Hz, 720P/60Hz,1080i/50Hz, 1080i/60Hz,1080P/24/25/30/50/60Hz
    Dimensions
    106(L) x 71(W) x 22.5(H)mm
    Weight
    190g
    Working Temperature
    0℃~50℃
    Product Manual
    Product specification
    Update Firmware
