HDMI version
HDMI2.0（HDR，YUV4:4:4）
Compatible with HDCP2.2,HDCP1.4
HDMI interface

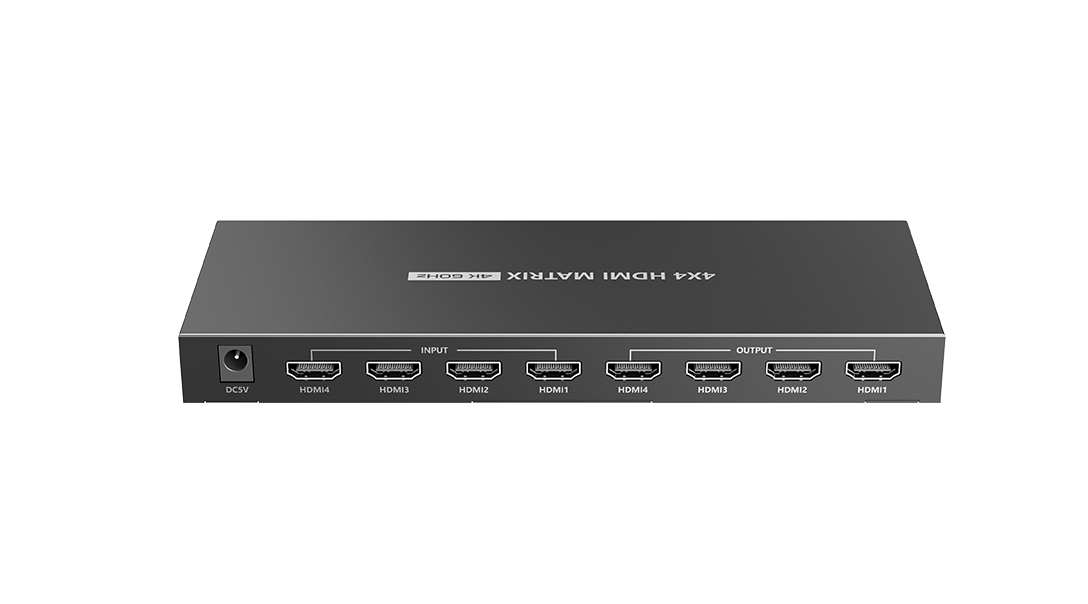

4 HDMI input, 4 HDMI output
Transmission rate
18Gbps
Bandwidth
600MHz
Resolution
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/60Hz, 4096×2160@24/25/30/60Hz
Audio format
LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos
RS-232
3 Pin(GND/Rx/Tx), Baud rate 9600
Voltage
DC5V/1A
Power consumption
＜4W
Working temperature
-20℃~60℃
Storage temperature
-30℃~70℃
Humidity
0~90%RH(No Condensation)
Housing
Iron
Color
Black
Weight
375g
Dimensions
210.0(L)*80.0(W)*21.0(H) mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
