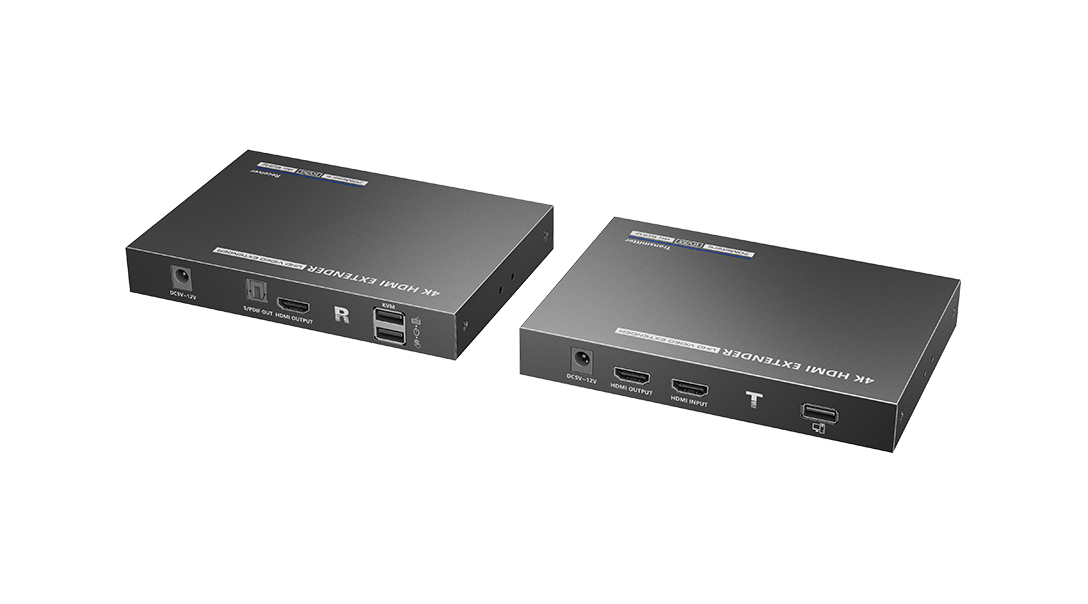

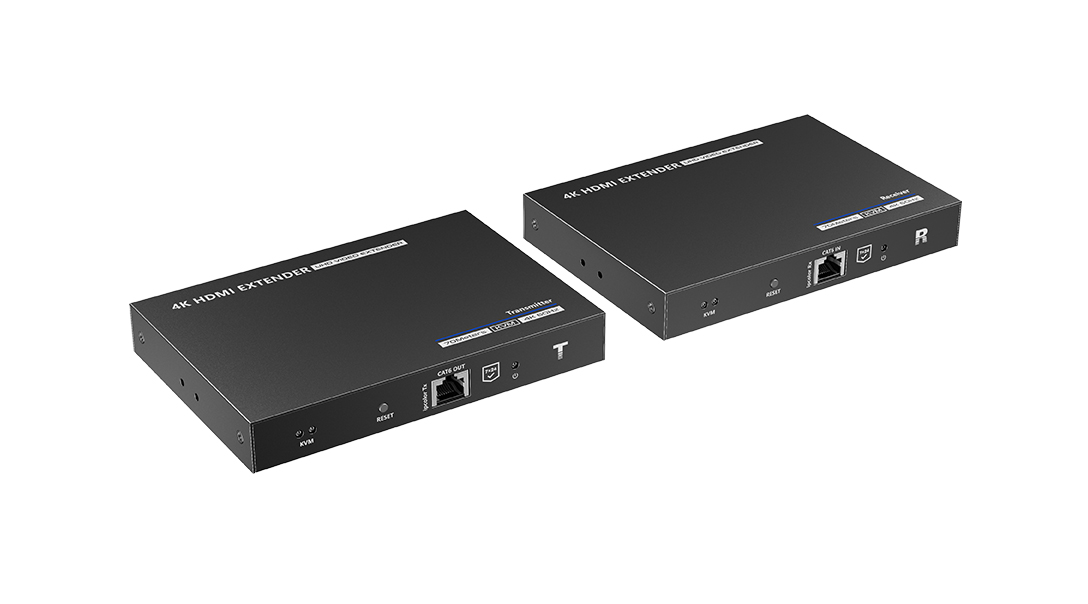

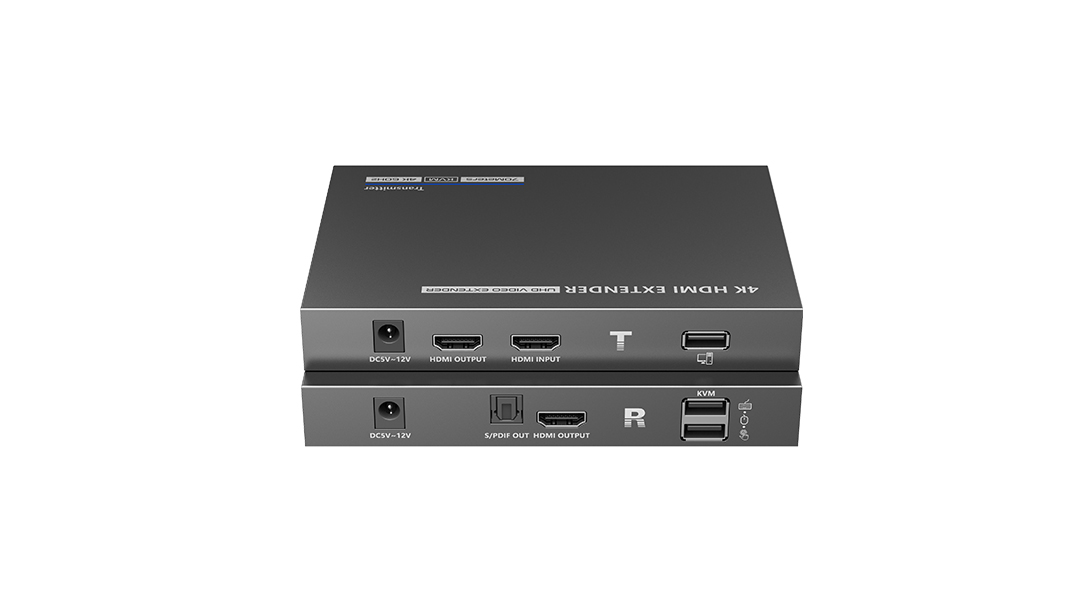

LKV676KVM-TI

4K@60Hz HDR Zero-Latency Point to Point KVM Extender

This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc.

Introduction

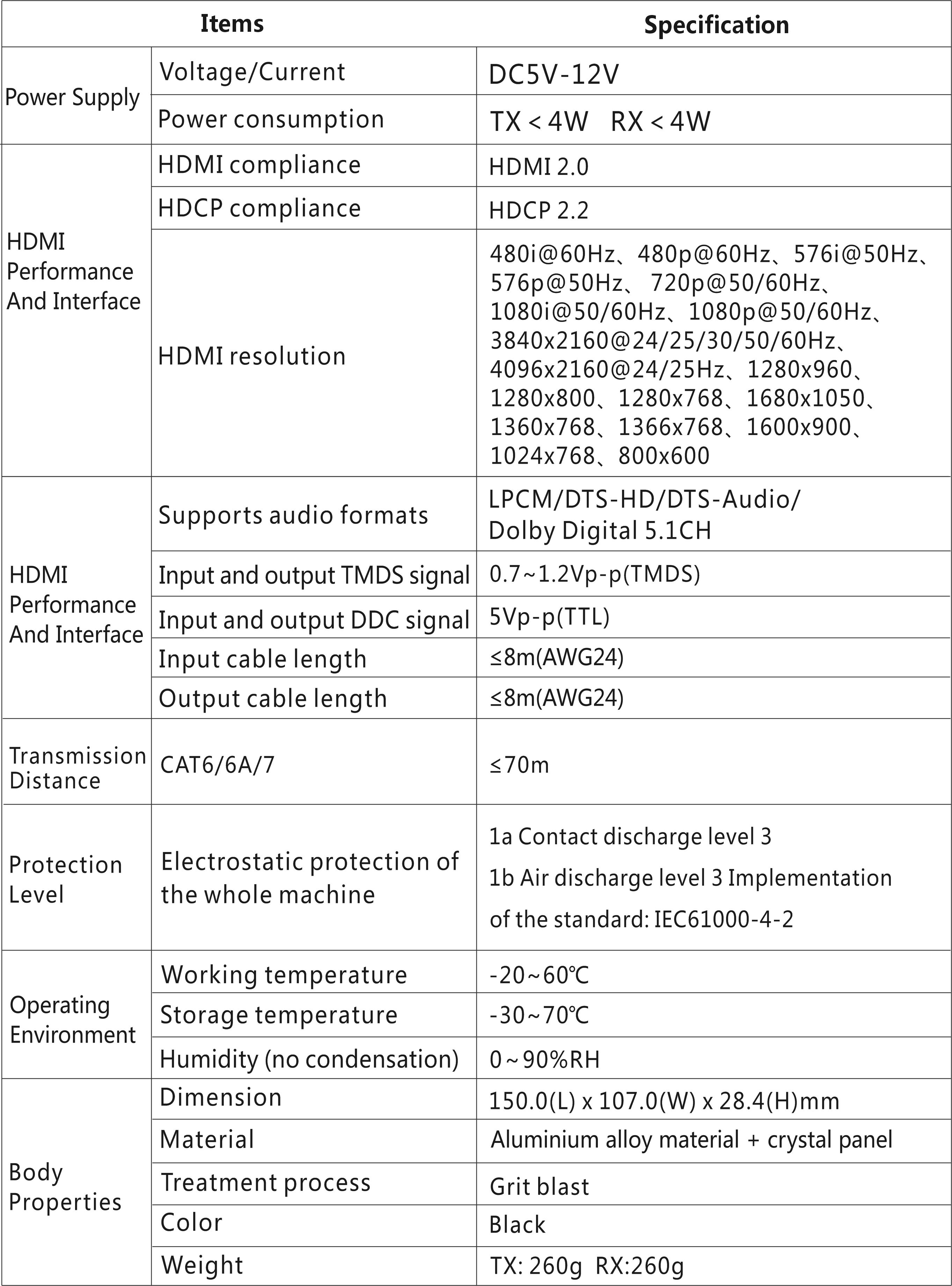

Parameters

Downloads

Voltage/Current

DC5V-12V

Power consumption

TX＜4W RX＜4W

HDMI compliance

HDMI 2.0

HDCP compliance

HDCP 2.2

HDMI resolution

480i@60Hz、480p@60Hz、576i@50Hz、 576p@50Hz、 720p@50/60Hz、 1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、 4096x2160@24/25Hz、1280x960、 1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、 1024x768、800x600

Supports audio formats

LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH

Input and output TMDS signal

0.7~1.2Vp-p(TMDS)

Input and output DDC signal

5Vp-p（TTL）

Input cable length

≦8m（AWG24）

Output cable length

≦8m（AWG24）

Cat6/6A/7 Transmission Distance

≤70m

Electrostatic protection of the whole machine

1a Contact discharge level 2
1b Air discharge level 3 Implementation of the standard：IEC61000-4-2

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0～90%RH

Dimension

153.0(L) x 105.5(W) x 22.0(H) mm

Material

Iron

Color

Black

Weight

TX: 348.0g RX: 348.0g
